D70S多功能數(shù)據顯示器的詳細資料：
D70S/H/I
142
925.1142 925.5609
mini-USB
926.6001

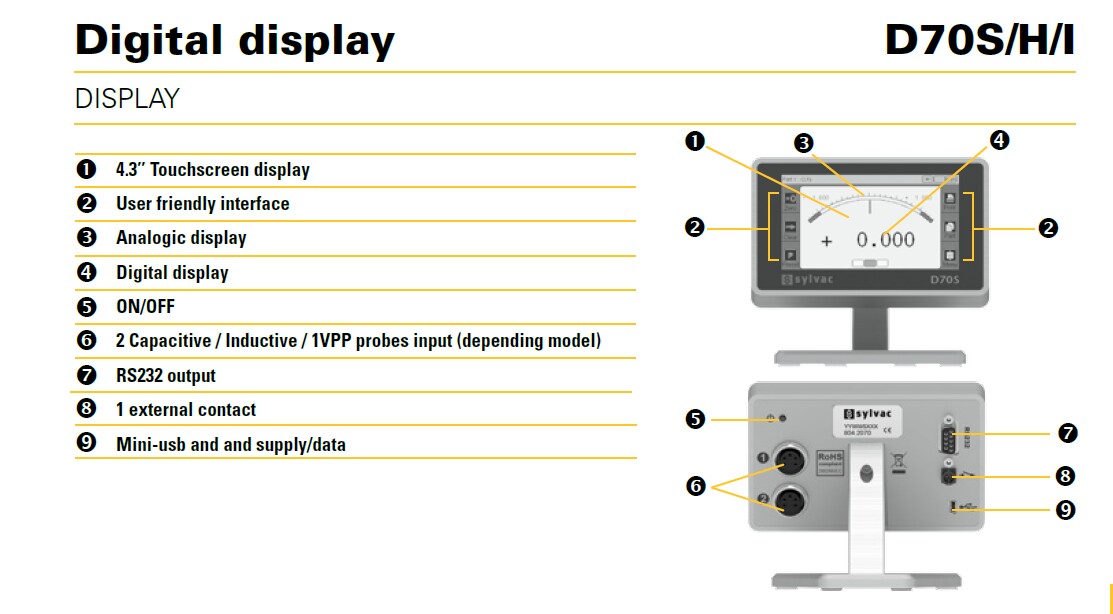

Digital display
DESCRIPTION
? 4’’3 touch screen display
? Available in 3 versions:
- D70S for Sylvac capacitive probes
- D70I for Sylvac inductive probes (also compatible with Tesa and Mahr probes)
- D70H for Heidenhain ST/MT probes (Mitutoyo and Magescale probes with adapter)
? All versions with 2 probe inputs
? Display resolution selectable up to 0.00001 mm
? Simple or double display with bargraph, needle or no-tolerances
? Probe’s combination : (C1, C2, C1-C2 …)
? Direct measurement or Min, Max, Average, Max-Min…
? User friendly interface
? Very robust construction (Aluminium)
? USB connection ?Keyboard? unidirectional and RS232 bidirectional
? No driver, no software to be installed
? Compatibility Excel and SPC
? Powered by the computer when connected by USB cable
142
925.1142 925.5609
mini-USB
926.6001
Digital display
DESCRIPTION
? 4’’3 touch screen display
? Available in 3 versions:
- D70S for Sylvac capacitive probes
- D70I for Sylvac inductive probes (also compatible with Tesa and Mahr probes)
- D70H for Heidenhain ST/MT probes (Mitutoyo and Magescale probes with adapter)
? All versions with 2 probe inputs
? Display resolution selectable up to 0.00001 mm
? Simple or double display with bargraph, needle or no-tolerances
? Probe’s combination : (C1, C2, C1-C2 …)
? Direct measurement or Min, Max, Average, Max-Min…
? User friendly interface
? Very robust construction (Aluminium)
? USB connection ?Keyboard? unidirectional and RS232 bidirectional
? No driver, no software to be installed
? Compatibility Excel and SPC
? Powered by the computer when connected by USB cable
